SPEEDCHECK-MX

Discover an affordable and connected radar speed sign packed with premium features with intelligent SpeedCheck^® MX Series

For more than 20 years, SpeedCheck signs have been the most trusted and effective radar speed signs on the market. This new MX model combines the robust quality and ultra-clear displays the name has been recognized for with simple and low-cost connectivity installers and agencies demand. Unlike other devices, as soon as SPEEDCHECK-MX receives power, it automatically connects to MX Cloud and MX Field App, removing the complexity and frustration of installation.

The SPEEDCHECK-MX comes in two-digit sizes (12-inch and 15-inch) and is packed with premium features at no additional cost – like iOS and Android apps, data collection software, and more.

Configure your model to meet MUTCD standards or add optional enhancements such as “SLOW DOWN” messages, strobes, and school zone beacons. Many states have SpeedCheck devices on their approved product list.

SPEEDCHECK-MX Features

• Every system ships with 3 years of free remote connectivity
• Out-of-the-box connectivity, hassle-free setup
• Local and remote access to traffic data, programming, health status, and reporting
• Built-in GPS for asset mapping and management on MX Cloud™
• Quick setup with MX Field App™ (iOS/Android)
• Ultra-clear display for maximum sign visibility and protection from vandalism and weather
• Every sign includes stealth mode, calendar operation, and reporting software
• Optional strobes, “Slow down” message and external radar
• Solar Power Report (SPR) available for every location
• Various sign sizes to meet both MUTCD 10^th and 11^th edition standards
• Universal brackets work easily for a variety of installation mounts

Standards and Compliance

Unlock full insights with MX Cloud™

Get complete asset visibility and seamless data collection: program, set up alerts, view data/charts like max speed, vehicle count, average speed, 85^th percentile, and access the GPS map for asset management and proactive future planning.  See all MX Cloud features and subscriptions.

Long-lasting, reliable performance

Designed with durable, weatherproof aluminum construction, vandal-resistant antennas, vibrant LEDs, and a unique safety mask that prevents distractions for passing drivers.

The ultra-bright LED display uses MUTCD-compliant digits against a black background that prevents “88” ghosting—ensuring readability in all weather and lighting conditions. The protective, polycarbonate window is anti-glare and UV-stabilized for high clarity and features a unique safety mask that limits the viewing angle to prevent drivers from watching the display as they pass.

SpeedCheck’s unique safety masking

This high-contrast design makes the SpeedCheck sign stand out against the competition. The images below were taken during a side-by-side test and show SpeedCheck’s superior visibility.

Competitor

Displays faint red “25” with ghosted “88” characters

SpeedCheck

Displays bright, curved “26” against deep black contrast

Product Options and Add-Ons

• “Your Speed” Sign Sizes and Colors
• Strobes, Messages, Beacons and Radar
• Display and Solar mounts

“YOUR SPEED” Sign Sizes and Colors

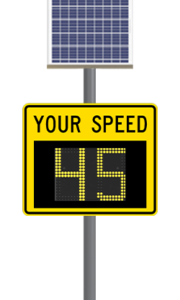

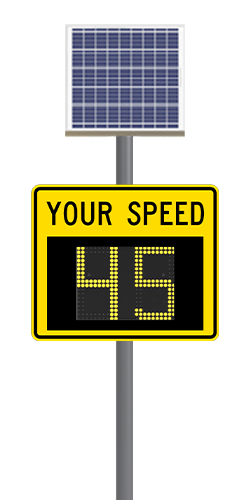

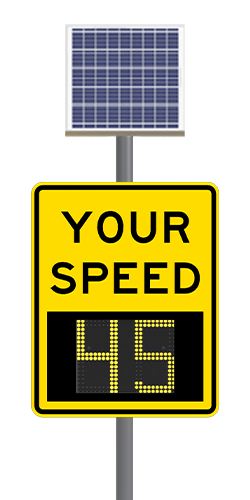

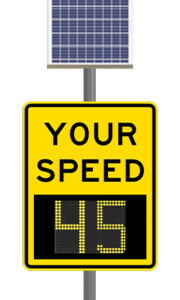

The SPEEDCHECK-MX static sign comes in more than 10 sizes and graphic designs, adhering to both MUTCD 10^th and 11^th edition standards.

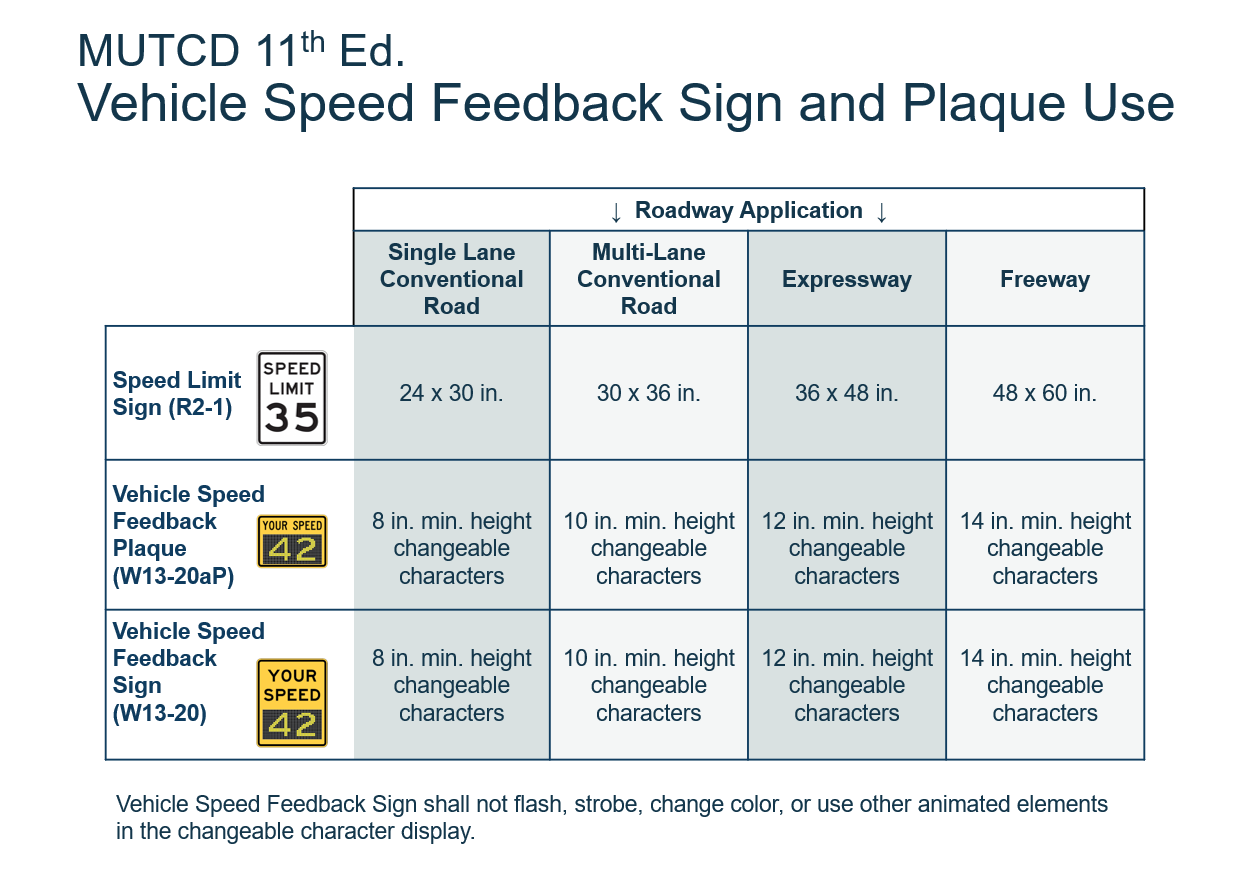

Carmanah’s static signs are easy to change on-site and include any reinforcing brackets needed. Two designs are available: W13-20 (“YOUR SPEED” on two lines) and W13-20ap (“YOUR SPEED” single line plaque). The 11^th edition of MUTCD recommends that the W13-20ap plaque be combined with a static speed limit sign (R2-1) above it, whereas the W13-20 is intended to only be used by itself and when approaching a curve. Read more about the new standards in our Radar Sign Application Guide.

The sheeting is available with 3M High Intensity Prismatic or Diamond Grade retroreflective options in both the standard yellow or fluorescent yellow/green (for school zone applications).

Sign Options

Fluorescent Yellow/Green (used for school zone applications)

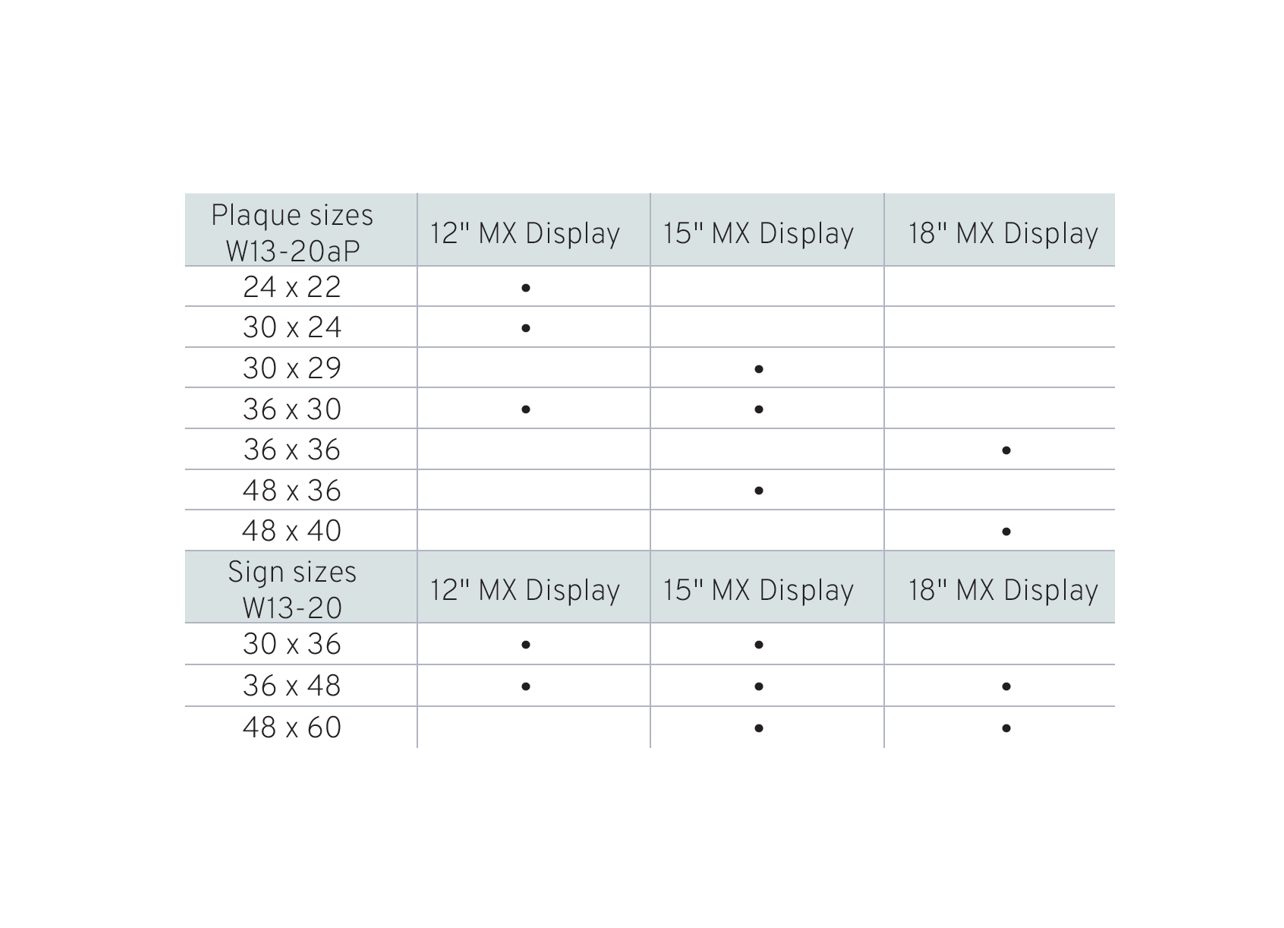

We offer a variety of static sign sizes for both W13-20 and W13-20ap designs, which work with SPEEDCHECK-MX 12- or 15-inch LED displays. Sign widths include 30 inches, 36 inches and 48 inches.

Strobes, Messages, Beacons and Radar

The SPEEDCHECK-MX radar speed sign is highly configurable and meets both 10th and 11th edition standards for MUTCD. It also offers optional features such as strobes and “SLOW DOWN” messages to create a stronger (but non-MUTCD compliant) visual deterrent. Read the Radar Speed Sign Application Guide for more information.

Two strobe options are available (white or red/blue), which can be included with the LED display at purchase or added in-field later.  The popular “SLOW DOWN” message (yellow LEDs) also uses directional LEDs with masking to aim the message only where you want it.

The display includes a built-in single-direction radar with a detection range of up to 800 feet, and an optional external radar kit is available to fine-tune the detection zone.

Display and Solar Mounts

Carmanah has designed a wide range of mounts for all types of poles, including solutions for square poles, flat surfaces, through bolts, U-bolts, and banding.  The installation is easy and can be installed by one person.  Every SPEEDCHECK-MX includes universal cast aluminum brackets to mount the LED display and works with any of our display mounting options.  An optional tilt and pan bracket is also available.

SPEEDCHECK-MX Display Mounts

Our online Build Tool will help you customize your system – simply select your sign design, color, strobes and even pole type, and the tool will create your unique SPEEDCHECK-MX. If you select a solar option, it will run our solar sizing program to determine the best solar panel and battery to ensure the system is sustainable year-round.  There are various sizes of solar panels, and each works with these side-of-pole or top-of-pole mounting options:

SPEEDCHECK-MX Solar Mounts

We put solar to work^™

Whether your project application is a crosswalk, school zone, or 24-hour sign marking, we can run a comprehensive site assessment to confirm the best solar-powered flashing beacon for your project. We run a field-proven software simulation to create a Solar Power Report^™ to show you how we did it. Best of all? It’s free, and we can have it ready in 24 hours.
