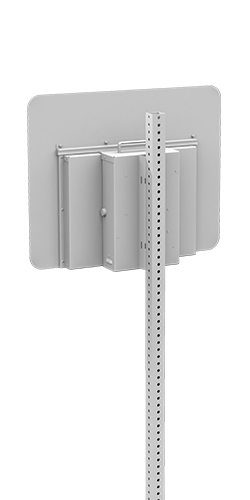

SPEEDCHECK-12

Alert speeding drivers with intelligent radar-activated warning SpeedCheck^® displays

The SpeedCheck-12 radar speed sign is an effective and portable solution for slowing traffic in pedestrian and school zones, residential areas, and arterials and rural roadways with posted speeds less than 45 mph. Also known as driver feedback signs, these traffic calming devices effectively draw the attention of drivers who are exceeding posted speed limits, allowing those targeted drivers to self-correct.

SpeedCheck systems have the added benefit of delivering two-way wireless communication, either onsite or remotely, for setup, diagnostics, upgrades, and more. Optional features include remote monitoring for programming, updating, and status monitoring from afar, additional static sign sizes and colors, extended radar range and others. Carmanah SpeedCheck signs meet the guidance of the Federal Highway Administration’s (FHWA) Manual on Uniform Traffic Control Devices (MUTCD). Many states have SpeedCheck devices on their approved product list. It is also approved by the Transportation Association of Canada (TAC) and other safety bodies around the world.

Features

• Mobile app for iOS^® and Android^™ enables quick and easy setup and programming from up to 50 ft away using on-site Bluetooth^® wireless connectivity.
• Built-in rapid-flashing strobe can be programmed to flash at user-defined speed thresholds.
• Powered by battery, solar or AC systems.

Three reasons to choose the SpeedCheck-12:

1. High-contrast display for greatest readability at a distance
2. Every sign includes data collection, calendar/schedule operation and reporting software
3. Customizable options for static signs, power sources, remote connectivity and more

High-contrast display

We achieve a high-contrast, ultra-clear display with high-intensity LEDs and our unique safety masking design. The bright LED display uses 12-inch, MUTCD-compliant digits against a black background that prevents “88” ghosting—ensuring readability in all weather and lighting conditions. The protective, polycarbonate window is anti-glare and UV-stabilized for high clarity, and features a unique safety mask that limits the viewing angle to prevent drivers from watching the display as they pass.

SpeedCheck’s unique safety masking

This high-contrast design makes the SpeedCheck sign stand out against the competition. The images below were taken during a side-by-side test and show SpeedCheck’s superior visibility.

Competitor

Displays faint red “25” with ghosted “88” characters

SpeedCheck

Displays bright, curved “26” against deep black contrast

Standards and Compliance

Software

SpeedCheck Manager

The SpeedCheck Manager software allows you to easily set up, program, update, and perform maintenance on the SpeedCheck radar speed sign. It can be accessed locally with Bluetooth^® from up to 50 ft away. Two operating modes as described below:

1. Standard operation: All settings for 24/7 operation or as a road speed data collector in stealth mode
2. Scheduled operation: Program and manage calendar schedules for multiple SpeedCheck signs, including simple on/off functions, data collection times and operation of external devices like flashing beacons and cameras

Read the SpeedCheck Manager spec sheet

SpeedCheck Traffic Analyzer

SpeedCheck radar speed signs have built-in data collection capabilities. Users can connect to their SpeedCheck sign and download traffic data to their laptop via Bluetooth^®. Traffic Analyzer software is included with every sign, allowing users to plot the data, see the success of their traffic calming programs and identify areas for improvement.

Read the Traffic Analyzer spec sheet

Product Options and Add-Ons

• “Your Speed” Sign Sizes and Colors

“YOUR SPEED” Sign Sizes and Colors

The SPEEDCHECK-12’s static sign comes in a variety of colors and sizes for a variety of applications. We offer three standard sign sizes: 30″x36″, 30″x24″ and a compact 24″x22″ (not MUTCD compliant). There are also four sign colors available based on MUTCD guidelines. If you’d like to learn more about MUTCD guidelines for radar speed signs, read our quick guide here.
